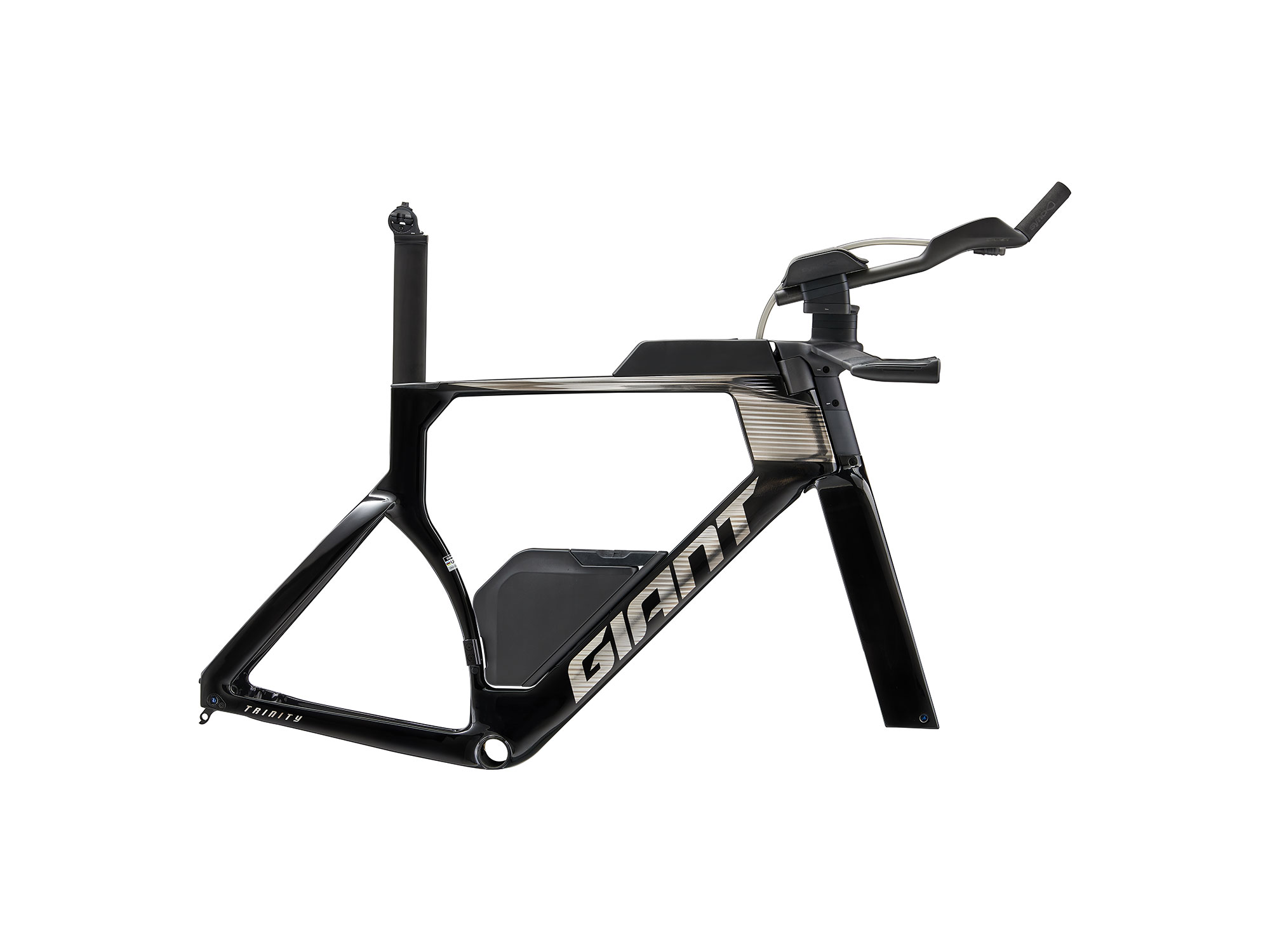

Trinity Advanced SL Triathlon Frameset

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

Reviews:0|

Share this bike:

HIGHLIGHTS

TECHS & FEATURES

GEOMETRY

SPECS

techs & features

Advanced SL Composite

Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

highlights

The new Trinity Advanced SL is built on an Advanced SL-grade composite frame and fork that’s 558g lighter than the previous generation. It features new disc brake integration for greater control along with added compliance in the armrests and seatpost to help absorb bumps and vibrations. The front end of the bike is totally redesigned with more armrest adjustments for stack, reach, angle and width, while a wider range of seatpost offset options allows the rider to dial in a powerful, comfortable pedaling position.

size guide and geometry

This size guide is based on your body height. Sizing to be used as a reference only. Please check with a local authorized Giant dealer to determine the correct size.

166cm

176cm

173cm

182cm

181cm

191cm

SML

ASEAT TUBE LENGTH (mm)

495

525

550

BSEAT TUBE ANGLE

77.0°

CTOP TUBE LENGTH (mm)

530

554

579

DHEAD TUBE LENGTH (mm)

105

125

145

EHEAD TUBE ANGLE

73.0°

FFORK RAKE (mm)

GTRAIL (mm)

HWHEELBASE (mm)

988

1013

1039

ICHAIN STAY LENGTH (mm)

405

JBOTTOM BRACKET DROP (mm)

KSTACK (mm)

513

532

551

LREACH (mm)

412

432

452

MSTAND OVER HEIGHT (mm)

786

814

838

NHANDLEBAR WIDTH (mm)

400

OSTEM LENGTH (mm)

165

170

172.5

PCRANK LENGTH (mm)

700C

QWHEEL SIZE

(TRI) 653-733 | (TT) 605-685

(TRI) 672-752 | (TT) 624-704

(TRI) 691-771 | (TT) 643-723

KEY PERFORMANCE FACTORS

FULL-SPEED DYNAMICS

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

ULTIMATE AERO EFFICIENCY

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.

PERSONALIZED FIT

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

SPECIFICATIONS

sizes

XS, S, M, L

colors

Carbon/Chrome

frame

Advanced SL-Grade Composite, 12x142mm thru-axle, disc

fork

Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc

handlebar

AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge

stem

Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge

seatpost

Trinity Composite

arm rest kit

Sync armrest set

extras

TT storage, hydration kit, computer mount, 30mm max tire size

weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
