Talon E+
techs & features
E+ System
E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.
highlights

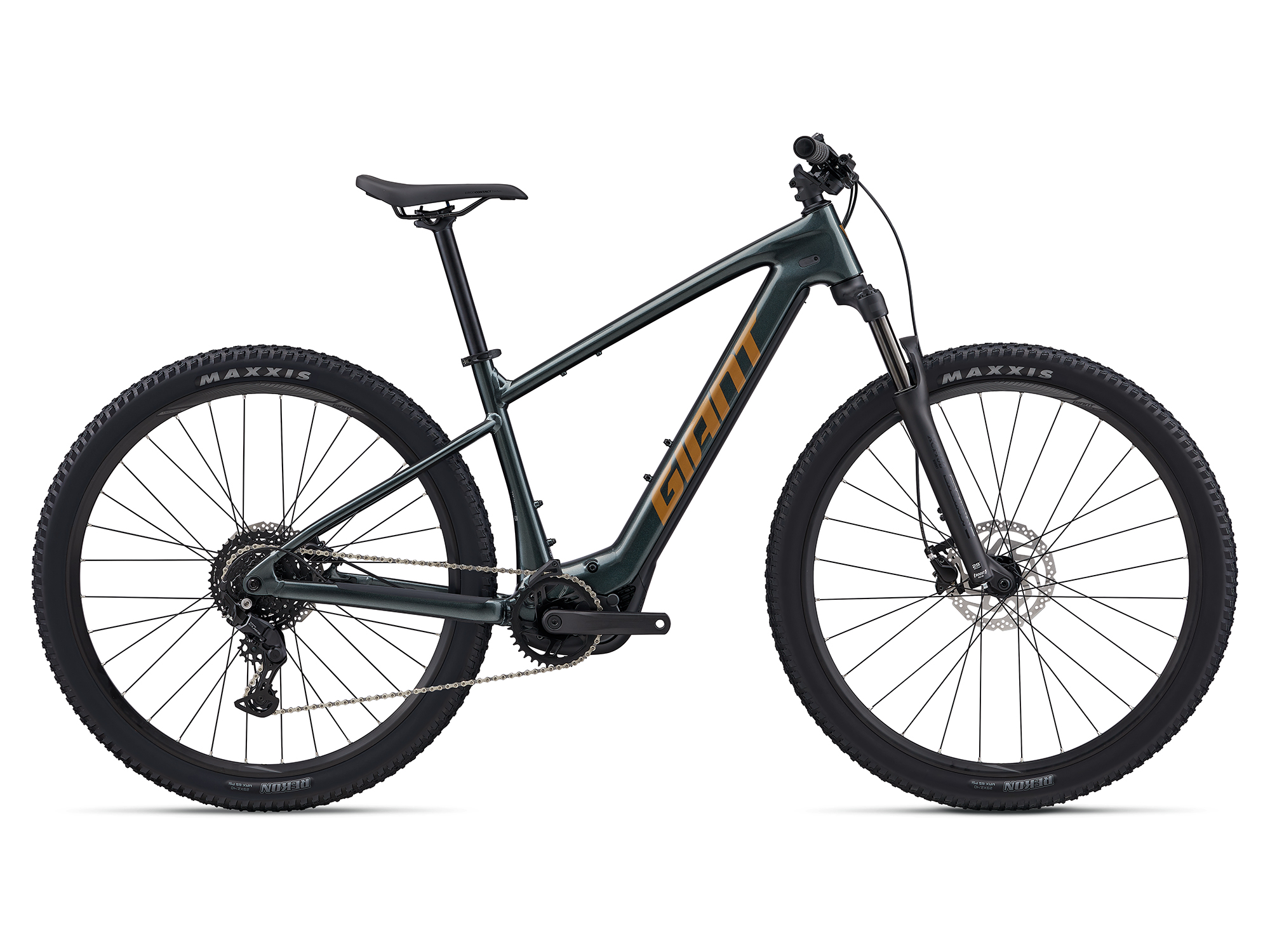

Featuring an all-new lightweight aluminium frame that blends modern hardtail design with our latest E-bike technologies, the new Talon E+ delivers confidence and fun on off-road terrain. A lower top tube offers greater stand-over height, and a 100mm suspension fork soaks up bumps, giving you smooth control on trails or bumpy bike paths. The SyncDrive Sport 2 motor helps you conquer climbs, and the removable EnergyPak 430 battery is integrated into a slim down tube. Updated controls include a handlebar-mounted RideControl Dash 2 to power on the bike and adjust support levels. The frame is compatible with a dropper seatpost and features integrated mounts for a rear carrier, fenders, a kickstand and two water bottle cages, giving you the option to add an EnergyPak Plus range extender.
1
2
3
4
5
6
7
8
9
10
11
size guide and geometry
This size guide is based on your body height. Sizing to be used as a reference only. Please check with a local authorized Giant dealer to determine the correct size.
the ride go app
CUSTOMISE
With the RideControl App, it is now possible to tune your motor settings and choose a support ratio most suitable for your riding style and terrain. You can choose between stronger, more aggressive performance, or tune it for a more comfortable ride. It's up to you. The motor comes with default settings and is adjustable with the App.
NAVIGATE
Use the RideControl app for turn-by-turn navigation specifically designed for the bike. If your e-bike is equipped with a compatible RideControl EVO display you can synchronise turn-by-turn navigation to your display, so there is no need to keep you phone at hand.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
EnergyPak Smart 430 / SyncDrive Sport2
Range
Extreme: 57 km
Good: 88 km
Ideal: 115 km
KEY PERFORMANCE FACTORS
SyncDrive Sport 2
This frame is paired with a SyncDrive Sport 2 motor and removable EnergyPak 430 battery that’s neatly integrated into a slim down tube to help minimise weight. The updated design allows space for two water bottles or a battery range extender for longer rides. A 100mm suspension fork helps smooth out bumpy terrain, while confident off-road geometry gives it a stable ride quality.
RideControl Dash 2
A new RideControl Dash 2 handlebar-mounted controller makes it easy to power on the bike and adjust support levels while you ride. You can also use the RideControl App to custom-tune the motor output and optimise range capabilities.
Designed Lighter
The frameset is crafted with lightweight aluminium shaped with sleek lines and modern styling. It weighs just 21.7kg (size medium)—significantly lighter than most other bikes in its category.
SPECIFICATIONS
motor
SyncDrive Sport 2, 75Nm, Powered by Yamaha
controller
RideControl Dash 2
display
RideControl Dash 2, full colour LCD screen
battery
EnergyPak 430Wh
charger
Giant EnergyPak smart charger 4A
maximum assisted speed
Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
connectivity
Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
sizes
S, M, L, XL
colours
Meteor Storm
frame
ALUXX aluminium, Overdrive 1½ - 1⅛in head tube, integrated KSA40 kickstand mount
fork
SR Suntour XCM 32 DS Coil, Boost 29, 100mm travel
shock
N/A
handlebar
Giant Connect TR Riser, 31.8mm
grips
Giant Sole-O Grip
stem
Giant Contact, alloy, 8-degree 50mm
seatpost
Giant 30.9mm, 2-bolt Micro Adjust, alloy
saddle
Giant Ergo Trail
pedals
Platform
shifters
Shimano Cues
rear derailleur
Shimano Cues 9-speed
brakes
Shimano MT200, hydraulic disc, 180mm [F/R]
brake levers
Shimano MT-200
cassette
Shimano Cues, 11-41T, 9-speed
chain
KMC eGlide, e-bike optimised
crankset
Forged alloy, 36T, 165mm
bottom bracket
N/A
rims
Giant alloy disc
hubs
Giant eTracker Boost alloy 6-bolt disc, 28H
spokes
Stainless steel
tires
Maxxis Rekon 29x2.4in
lighting
-
carrier
-
weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
